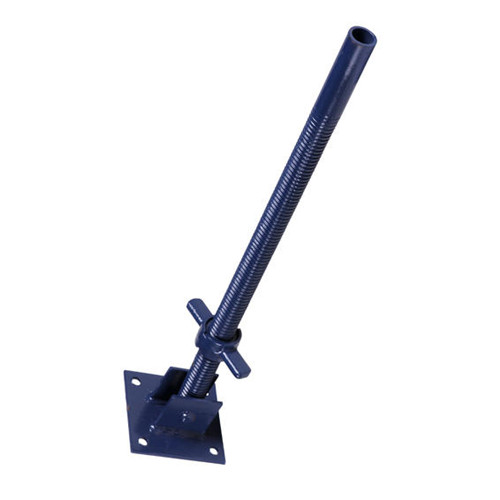

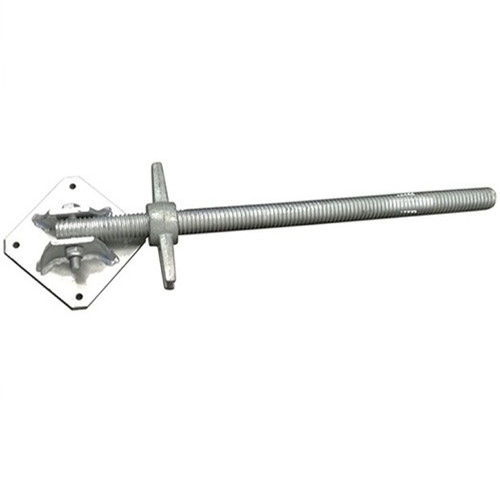

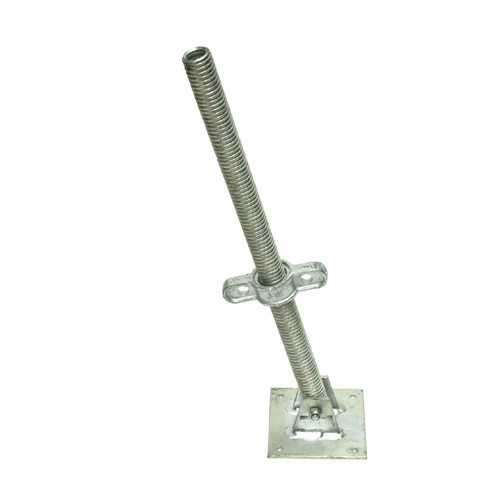

Scaffolding Swivel Screw Jack Base

The scaffolding swivel screw jack base is a vital component at the very bottom of a scaffold structure, designed to provide stability, adjustability, and adaptability to uneven or sloped surfaces.

Components:

1. Screw Tube (Spindle/Rod): This is a long, typically hollow or solid steel tube, with a thread running along its length. It inserts into the bottom of the scaffold standard (vertical leg).

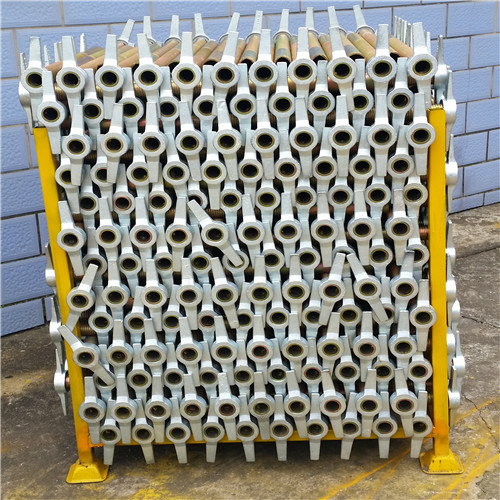

2. Jack Nut (or Wing Nut/Handle): A cast or forged nut with internal threads that match the spindle. This nut is rotated to move up or down the threaded stem, allowing for precise height adjustment.

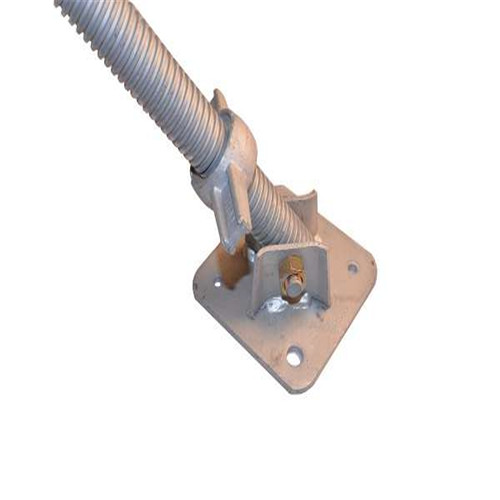

3. Swivel Base Plate (Foot Plate): This is a flat, typically square or round, metal plate at the very bottom. Crucially, it’s connected to the threaded stem by a swivel mechanism. This mechanism allows the base plate to pivot and adjust its angle relative to the stem.

Function and Purpose:

• Leveling on Uneven Ground: The primary purpose of any screw jack base is to allow for individual height adjustment of each scaffold leg. This is essential to ensure that the entire scaffold structure is perfectly level, even if the ground it’s resting on is uneven.
• Adapting to Sloped Surfaces: This is where the “swivel” feature becomes indispensable. If the scaffold needs to be set up on an incline, like a pitched roof, a sloped driveway, or uneven terrain, the swivel base plate can independently angle itself to sit flush with the ground. This ensures maximum contact area and stable load distribution, preventing the scaffold leg from tipping or becoming unstable.
• Load Distribution: The base plate itself has a larger surface area than the scaffold leg, which helps to distribute the scaffold’s weight (and the weight of workers, materials, etc.) evenly over a broader area of the ground. This reduces ground pressure and helps prevent the scaffold from sinking into soft or loose soil.
• Safety and Stability: By providing a level and stable foundation, swivel screw jack bases significantly enhance the overall safety and stability of the scaffolding system, reducing the risk of tipping or collapse.

The scaffolding swivel screw jack base is a fundamental component for ensuring a safe, level, and stable foundation for any scaffold, especially when encountering challenging ground conditions.
