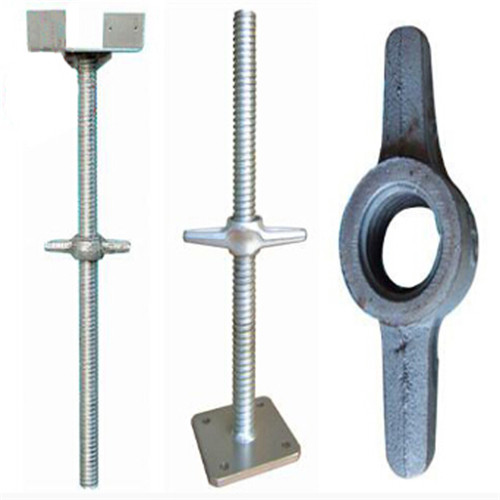

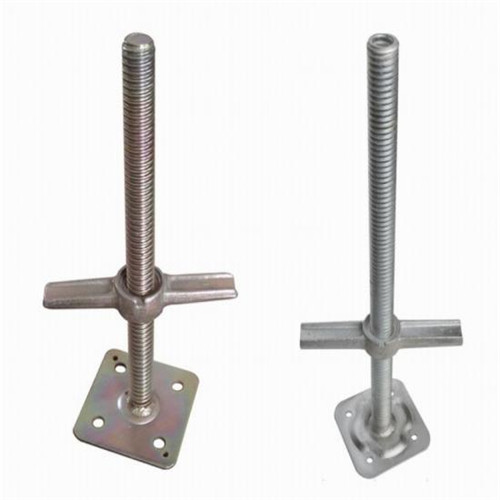

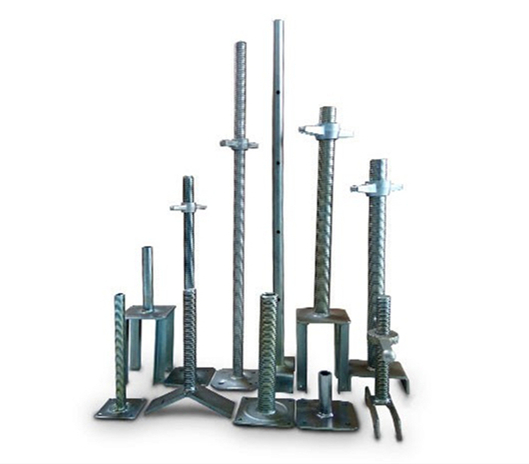

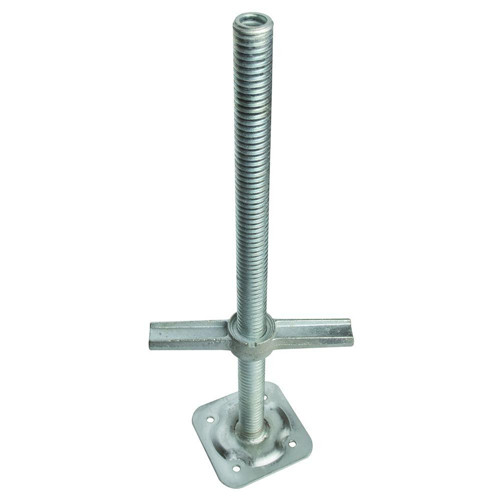

Solid Screw Jack Base
The scaffolding base jack (screw jack) is used as a starting base for a scaffold, which provides stability by adjusting the base jack nut on uneven ground.
Product Specification Sheets for Popular Size as following,
and our scaffolds can be customized to meet the demands of the various industrial applications.
| Description | Diameter | Length | Plate Size | Weight | |
| Millimeters | Millimeters | Millimeters | Kgs | ||
| Solid U Head Jack | φ30(solid) | 600 | 150x150x50x4 | 4.32 | |
| Solid U Head Jack | φ34(solid) | 500 | 140x210x75x6 | 6.2 | |
| Hollow U Head Jack | φ38(hollow) | 600 | 150x150x50x6 | 4.29 | |
| Hollow U Head Jack | φ48(hollow) | 600 | 150x150x50x6 | 5.23 |
