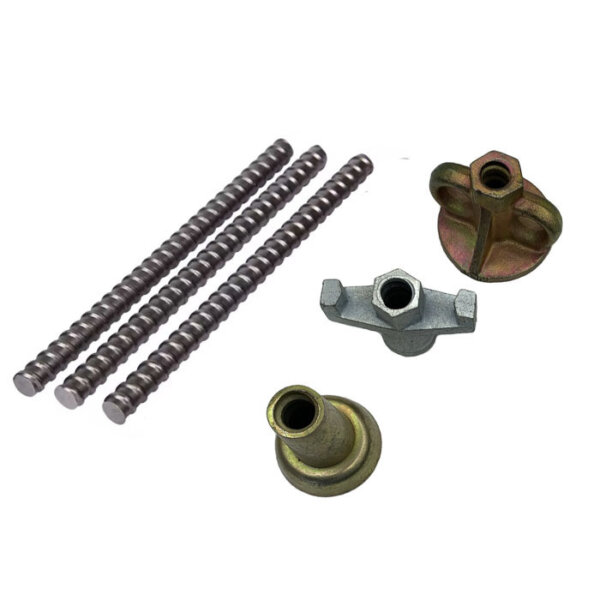

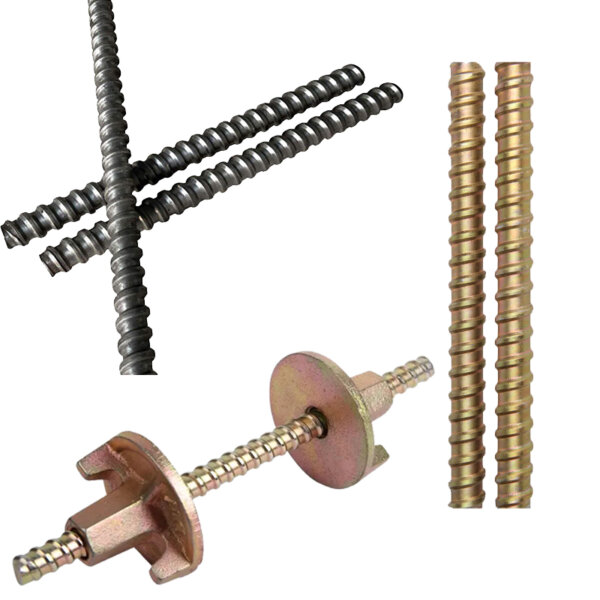

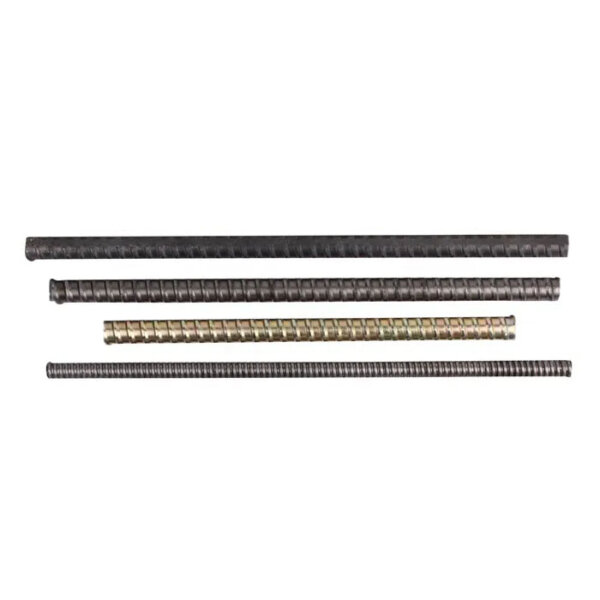

High Strength Formwork Tie Rod (D15/17mm) – Dywidag Compatible
The Bonin Formwork Tie Rod (D15/17) is a high-tensile cold-rolled steel bar used to secure concrete wall formwork panels. Featuring a coarse thread (10mm pitch), it is fully compatible with standard Dywidag systems and Wing Nuts. Engineered to withstand high concrete pouring pressure, making it the industry standard for shear walls, columns, and bridge construction.
-
Diameter: 15/17mm (Standard)
-
Breaking Load: 140kN (Standard) / 190kN (High Tensile)
-
Surface: Self Color / Galvanized
-
Length: 1m – 6m (Customizable)
Contact us today to get a quote or to discuss your custom requirements. We supply reliable scaffolding parts for projects of any scale.

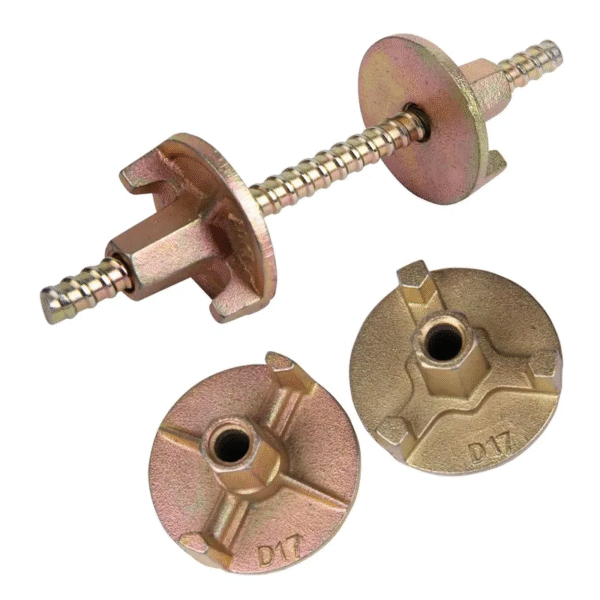

Product Description: Overview The Bonin Tie Rod System is the backbone of modern concrete formwork. Manufactured through a precision cold-rolling process, our tie rods offer superior tensile strength compared to traditional cut-thread bars. The coarse thread design allows for quick assembly and disassembly with Wing Nuts, significantly speeding up on-site operations.
Key Features:
-
Self-Cleaning Thread: The robust 10mm pitch thread is resistant to damage and easy to clean from concrete residue, allowing for multiple re-uses.
-
Weldable Options: We offer weldable tie rods (upon request) for applications requiring anchor welding into steel piles or structures.
-
Custom Lengths: While standard stock is 3m or 6m, we can cut to specific project requirements (e.g., 1.2m, 2.5m) to save you labor costs on-site.
Application:
-
Concrete Wall Formwork
-
Column & Beam Casting
-
Bridge & Tunnel Infrastructure
